Gold Coin
R5 - 500gm
Details

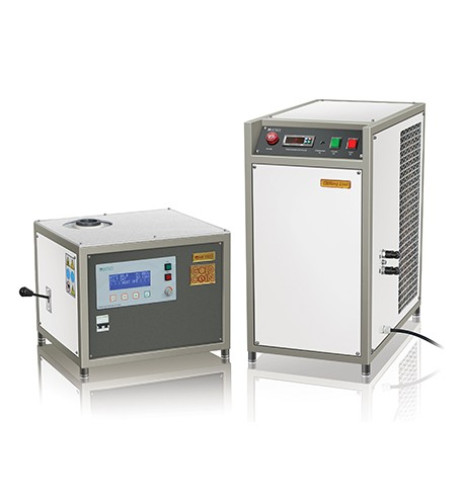

The GOLD COIN induction system is developed on ultramodern IGBT technology for conveniently melting small charges successively. It has automatic temperature control to reduce burning losses. It can be easily installed at any convenient place due to small size, low weight and minimum power consumption. Due to all this advantages it is also most suitable to retail showrooms & testing laboratories.
Features
- Operates on single phase
- Fastest melting
- Easy to install
- Minimum power consumption
- Reduced metal Loss
- Zero Tolerance safety precautions
- Automatic power & temperature control
- Perfect homogeneous mixing of alloys
- Best suitable for retail channel stores
Benefits
- 40% + 40% income Tax Depreciable
- Minimum space and power requirements
- Convenient layout
- No products of combustion or waste
- Economical and efficient in operation
- Energy saving – flame less furnace
- Nonstop operation as chilling unit is included equipment
Technical Specification
Power Supply | (single phase) |
---|---|
Voltage | 230V 50Hz/60Hz |
Absorbed Power | 2.3 KVa |
Capacity of High destiny Crucible | 500 gram 24Kt (Au)+ |
Maximum Temperature | 1200°C |
Melting Time | 7 min.++ |
Temperature Measurement | K-Type |
Water re-cooling System | Included |
Colling Water Temperature | 20°C - 30°C |
Water Pressure | 2.5 Bar |
Maximum Water Flow | 3 ltr/min |
Weight (with chilling unit) | 77 Kg |
Dimensions (mm) L * B * H |
|
Induction Generator | 385 X 470 X 350 |

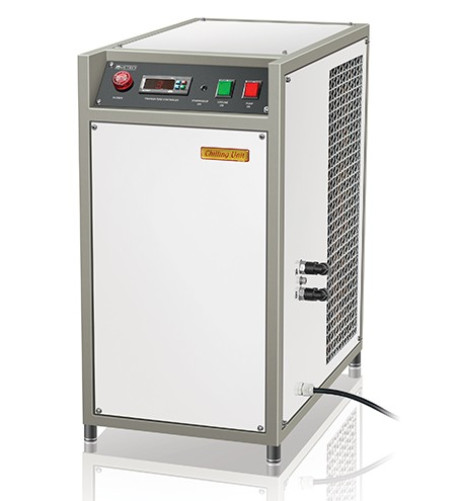

Chilling Unit | 535 X 350 X 560 |
