Gold Mine

D3I - 30 kg

Download Catalogue

Details

The GOLD MINE induction systems are developed for melting large quantity of metals for refining, manufacturing, etc.

Equipped with Tilting mechanism with manual gearbox to pour out molten metal without needing any electric connection which enables safety and peace of mind.

Automatic temperature regulation reduces burning losses and overheating.

These GOLD MINE inductions are tuned at low frequency to allow for perfect mixing of metals. These low frequency inverters are controlled by Digital DSP microcontroller with fault display to reduce down times.

Reliable, easy to install, maintain, and service.

Water cooled components and high-temperature insulations ensures prolonged heavy-duty use

Features

  • Fast melting
  • Easy to install
  • Manual Tilting facility
  • Reduced metal Loss
  • Zero Tolerance safety precautions
  • Automatic power & temperature control
  • Perfect homogeneous mixing of alloys
  • Best suitable for manufacurers and refiners

Benefits

  • 40% + 40% income Tax Depreciable
  • Minimum power requirements
  • Convenient layout
  • No products of combustion or waste
  • Economical and efficient in operation
  • Energy saving – flame less furnace
  • Nonstop operation as chilling unit is included equipment

Technical Specification

Power Supply (Three phase)
Voltage 415V 50Hz/60Hz
Absorbed Power 23 Kva
Capacity of High destiny Crucible 30 kg 24Kt (Au)+
Maximum Temperature 1200°C
Melting Time 15 min.++
Temperature Measurement K-Type
Water re-cooling System Included
Colling Water Temperature 20°C - 30°C
Water Pressure 4 Bar
Maximum Water Flow 14 ltr/min
Weight (with chilling unit) 650 Kg

Dimensions (mm) L * B * H

Induction Generator 750 X 980 X 1380

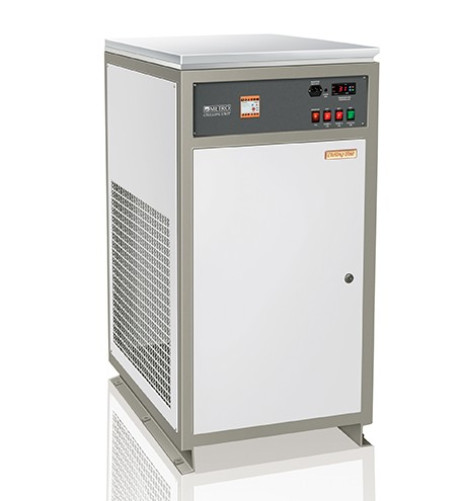

Chilling Unit 650 X 1010 X 1220

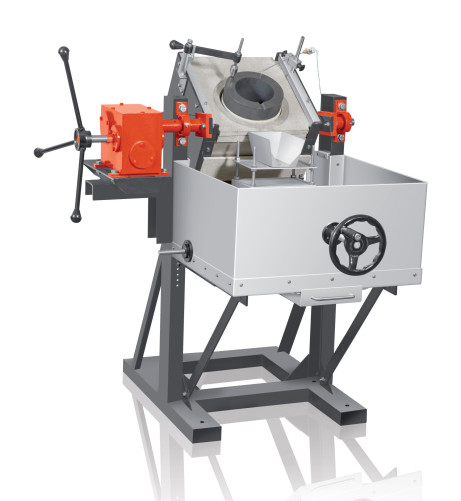

Melting Unit 1050 X 1090 X 1060

† Brimful

†† Under Standard condition
