Silver Mine
S25 - 30 kg
Details
The SILVER MINE induction systems are developed for melting large quantity of metals for refining, manufacturing, etc.
Equipped with Tilting mechanism with manual gearbox to pour out molten metal without needing any electric connection which enables safety and peace of mind.
Automatic temperature regulation reduces burning losses and overheating.
These SILVER MINE inductions are tuned at low frequency to allow for perfect mixing of metals. These low frequency inverters are controlled by Digital DSP microcontroller with fault display to reduce down times.
Reliable, easy to install, maintain, and service.
Water cooled components and high-temperature insulations ensures prolonged heavy-duty use
Features
- Fast melting
- Easy to install
- Manual Tilting facility
- Reduced metal Loss
- Zero Tolerance safety precautions
- Automatic power & temperature control
- Perfect homogeneous mixing of alloys
- Best suitable for manufacurers and refiners
Benefits
- 40% + 40% income Tax Depreciable
- Minimum power requirements
- Convenient layout
- No products of combustion or waste
- Economical and efficient in operation
- Energy saving – flame less furnace
- Nonstop operation as chilling unit is included equipment
Technical Specification
Power Supply | (Three phase) |
---|---|
Voltage | 415V 50Hz/60Hz |
Absorbed Power | 25 KW |
Capacity of Crucible | 40 kg 24Kt Au + |
Capacity of Crucible | 30 kg 925 Ag + |
Maximum Temperature | 1200°C |
Melting Time | 25 min.++ |
Temperature Measurement | K-Type |
Water re-cooling System | Included |
Colling Water Temperature | 20°C - 30°C |
Water Pressure | 4 Bar |
Maximum Water Flow | 14 ltr/min |
Weight (with chilling unit) | 636 Kg |
Dimensions (mm) L * B * H |
|
Induction Generator | 700 X 600 X 1475 |

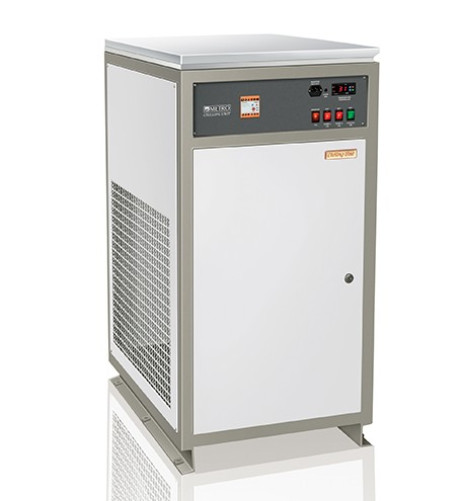

Chilling Unit | 650 X 1010 X 1220 |

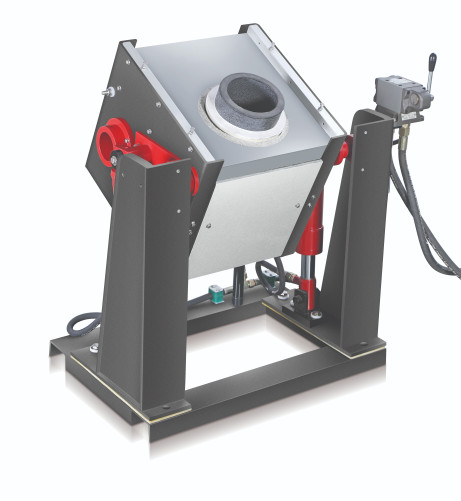

Melting Unit | 530 X 960 X 875 |
Hydraulic Unit | 540 X 575 X 700 |
