Gold Mine
G1 - 10 Kg
Download
Catalogue
Details

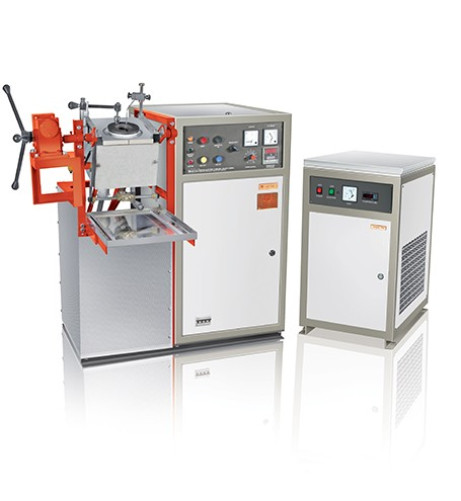

The GOLD MINE induction systems are developed for melting large quantity of metals for refining, manufacturing, etc.
Equipped with Tilting mechanism with manual gearbox to pour out molten metal without needing any electric connection which enables safety and peace of mind.
Automatic temperature regulation reduces burning losses and overheating.
These GOLD MINE inductions are tuned at low frequency to allow for perfect mixing of metals. These low frequency inverters are controlled by Digital DSP microcontroller with fault display to reduce down times.
Reliable, easy to install, maintain, and service.
Water cooled components and high-temperature insulations ensures prolonged heavy-duty use
Features
- Fast melting
- Easy to install
- Manual Tilting facility
- Reduced metal Loss
- Zero Tolerance safety precautions
- Automatic power & temperature control
- Perfect homogeneous mixing of alloys
- Best suitable for manufacurers and refiners
Benefits
- 40% + 40% income Tax Depreciable
- Minimum power requirements
- Convenient layout
- No products of combustion or waste
- Economical and efficient in operation
- Energy saving – flame less furnace
- Nonstop operation as chilling unit is included equipment
Technical Specification
| Power Supply | (Three phase) |
|---|---|
| Voltage | 415V 50Hz/60Hz |
| Absorbed Power | 12 KVa |
| Capacity of High destiny Crucible | 10 kg 24Kt (Au)+ |
| Maximum Temperature | 1200°C |
| Melting Time | 12 min.++ |
| Temperature Measurement | K-Type |
| Water re-cooling System | Included |
| Colling Water Temperature | 20°C - 30°C |
| Water Pressure | 3.5 Bar |
| Maximum Water Flow | 10 ltr/min |
| Weight (with chilling unit) | 403 Kg |
|
Dimensions (mm) L * B * H |
|
| Induction Generator | 1210 X 860 X 1090 |

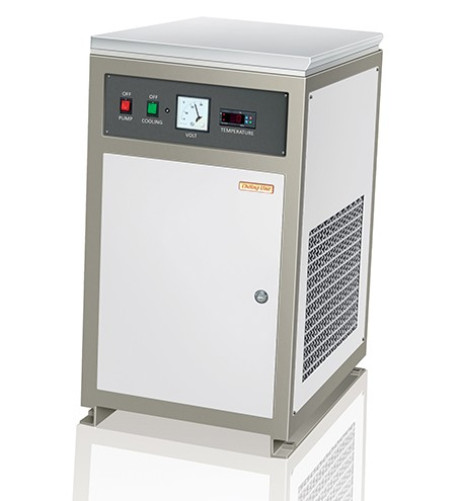

| Chilling Unit | 560 X 790 X 850 |
